Components (1)

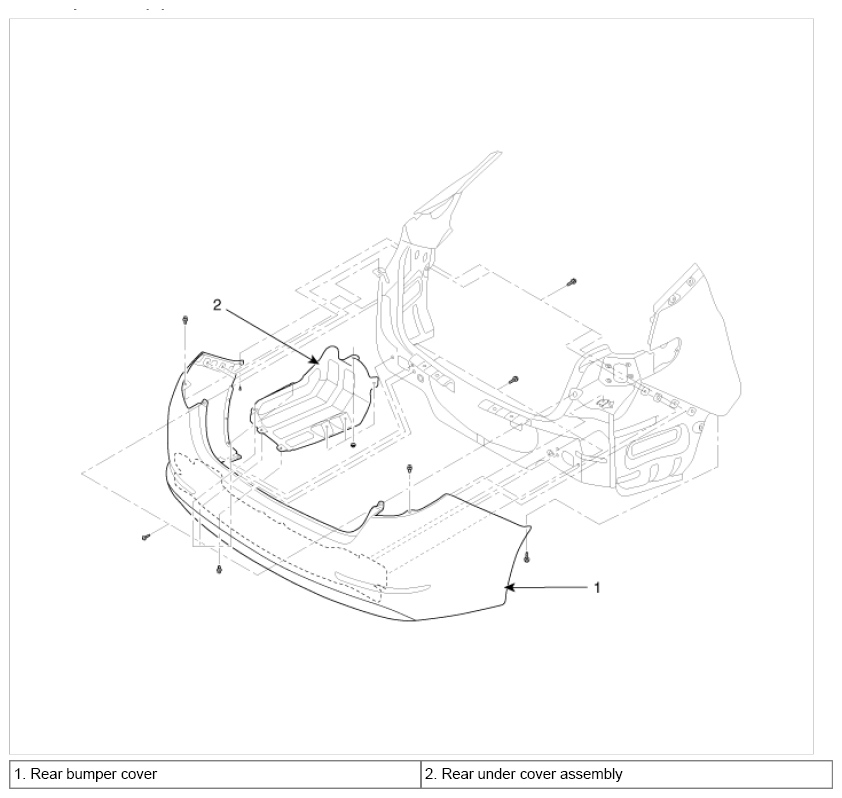

Fig 1: Exploded View Of Rear Bumper (1 Of 2)
G08308821Courtesy of KIA MOTORS AMERICA, INC.
