Parking Brake Shoe

Raise the vehicle, and make sure it is securely supported.
Remove the rear tire and wheel, then remove the brake caliper. Refer to REAR DISC BRAKE REMOVAL .
Remove the brake Disc (A).

Fig 1: Brake Disc
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear hub unit bearing (A).

Fig 2: Rear Hub Unit Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shoe hold down pin (A) and the spring (B) by pushing the retainer spring and turning the pin.

Fig 3: Removing Shoe Hold Down Pin & Spring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the adjuster assembly (A) and the return spring (B).

Fig 4: Adjuster Assembly & Return Spring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the parking brake cable (B) from the brake shoe (A).

Fig 5: Parking Brake Cable & Brake Shoe
Courtesy of KIA MOTORS AMERICA, INC.

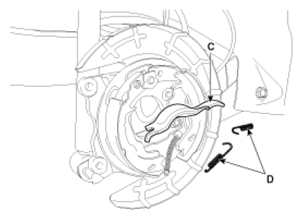

Remove the strut (C) and the strut spring (D).

Fig 6: Strut & Strut Spring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake shoe.
Remove the parking brake cable retaining (B), from the parking brake cable (A).

Fig 7: Parking Brake Cable & Retainer

Courtesy of KIA MOTORS AMERICA, INC.
