Parking Brake Shoe Clearance Adjustment

  1. Raise the vehicle, and make sure it is securely supported.
  2. Remove the rear tire and wheel.
  3. Remove the plug from the disc.
    Fig 1: Disc Plug
    G07368420Courtesy of KIA MOTORS AMERICA, INC.
  4. Rotate the toothed wheel of adjuster by a screw driver until the disc is not moving, and then return it by 3~5 notches in the opposite direction.

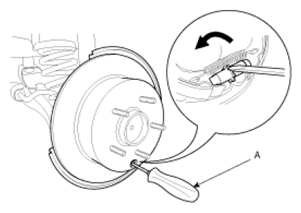

    Fig 2: Rotating Toothed Wheel
    G07368421Courtesy of KIA MOTORS AMERICA, INC.
