Signal Waveform & Data

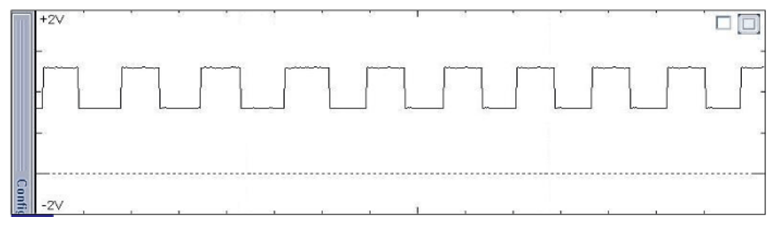

Fig 1: Display - Signal Waveform Of Wheel Speed Sensor (Active Type)

G07370420

Courtesy of KIA MOTORS AMERICA, INC.

High : Approx. 1.4V, Low : Approx. 0.7V0.59~0.84V
