Head Lamp And Fog Lamp Aiming Point

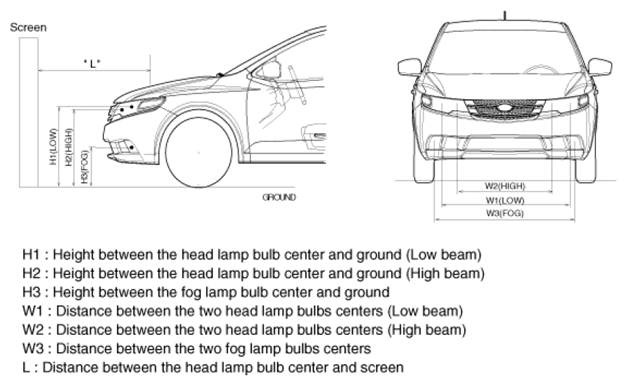

Fig 1: Head Lamp & Fog Lamp Aiming Point Dimensions
G07369421Courtesy of KIA MOTORS AMERICA, INC.
HEAD LAMP AND FOG LAMP DIMENSIONS REFERENCE CHART

Unit: in (mm)
Vehicle condition H1 H2 H3 W1 W2 W3 L
Without driver 27.0 (687) 26.9 (684) 13.8 (352) 46.9 (1, 190) 34.6 (880) 53.2 (1, 352) 118 (3, 000)
With driver 26.7 (680) 26.6 (677) 13.6 (345)
  1. Turn the low beam on with driver.

    The cut-off line should be projected in the allowable range (shade region) shown in the picture.

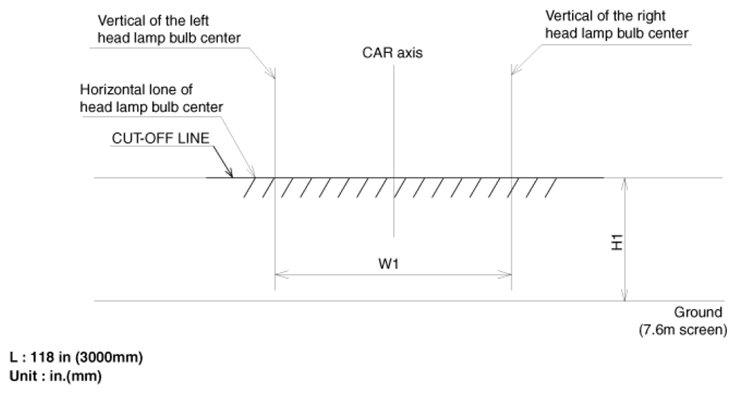

    Fig 2: Low Beam Allowable Range
    G07369422Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn the front fog lamp on with driver.

    The cut-off line should be projected in the allowable range shown in the picture.

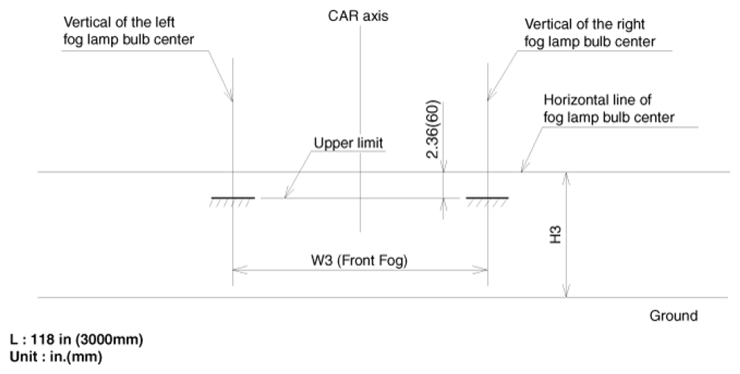

    Fig 3: Front Fog Lamp Allowable Range
    G07369423Courtesy of KIA MOTORS AMERICA, INC.
