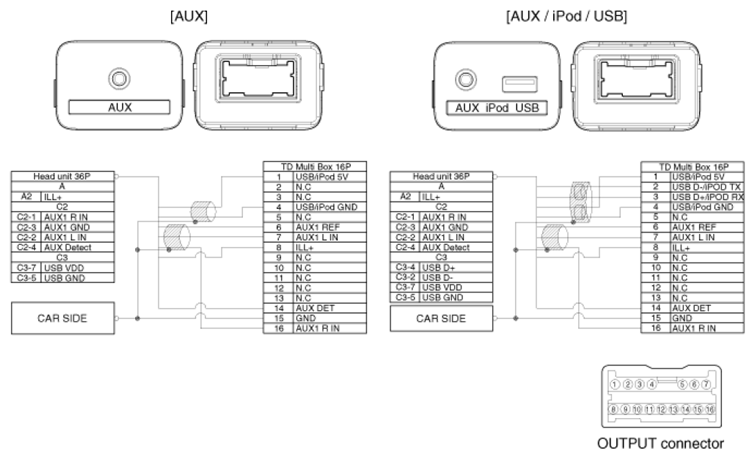

Home >> Kia >> 2011 >> Forte EX, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio System >> AUX (Auxiliary) Jack >> Schematic Diagrams >> Circuit Diagram
