DTC P1610: Non-Immobilizer-EMS Connected To An Immobilizer
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

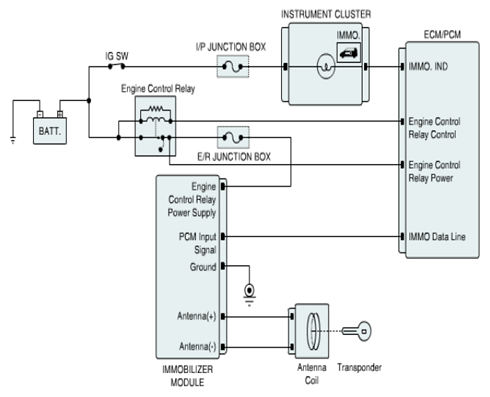

Fig 1: Immobilizer Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

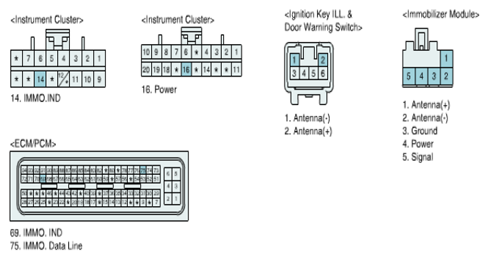

Fig 2: Immobilizer Module Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
