Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and presence of trouble code.
  4. Using a scan tool, clear the DTC, and then re-check for DTC.

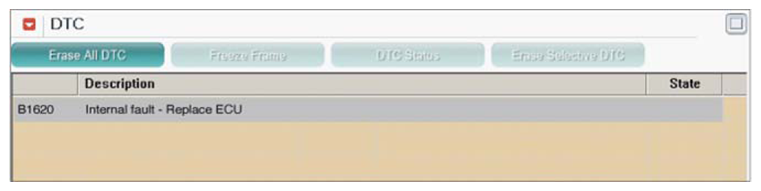

    Fig 1: Scantool Display - DTC
    G06519788Courtesy of KIA MOTORS AMERICA, INC.
  5. Is DTC present?

    YES

    • Internal fault of SRSCM. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
