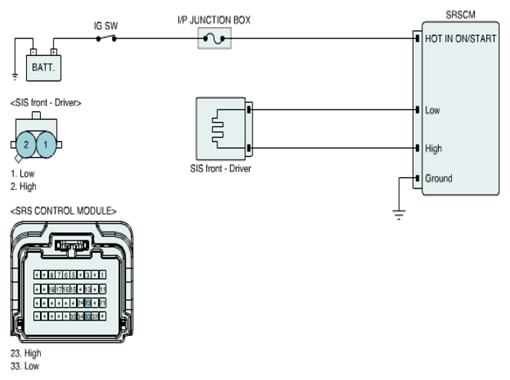

Home >> Kia >> 2010 >> Soul Sport, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) - Diagnosis >> DTC B1409: SIS (Side Impact Sensor) Front-Driver Communication Error >> General Information >> Diagnostic Circuit Diagram
