Monitor Scantool Data

Ignition "OFF", connect scantool.
Ignition "ON" Engine "OFF", select "Current Data" mode.
Monitor the "All airbag resistance" parameter on the Scantool.
Specification : 1.6Ω< Resistance of airbag < 6.0Ω

Reference : In the case of an open in the airbag circuit: FAIL

In the case of a short to battery in the airbag circuit: FAIL

In the case of a short to ground in the airbag circuit: FAIL

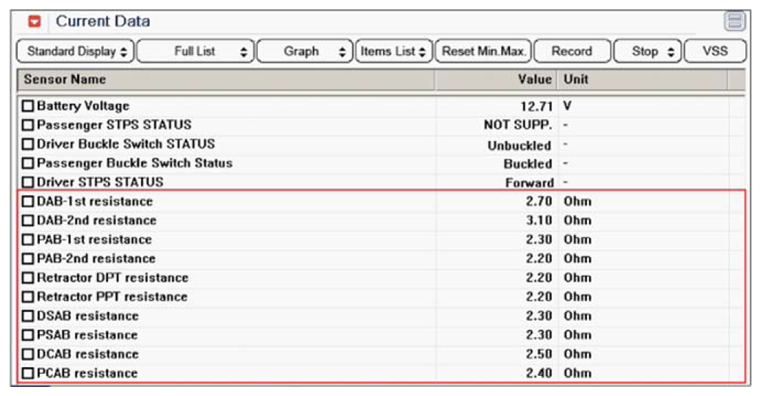

Fig 1: Monitoring Airbag Resistance Parameter - Normal Data
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed within specifications?
YES
- Check for short between ignition circuits of DAB, PAB, BPT, CAB, SAB. If the condition of harness and component is OK, this fault is caused by SRSCM internal error so replace a known-good SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent, caused by poor contact in the part's and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
