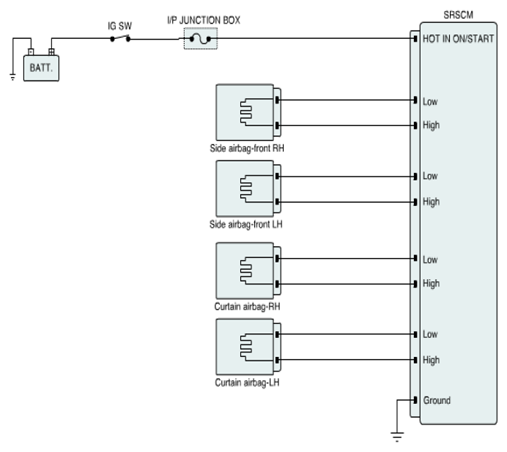

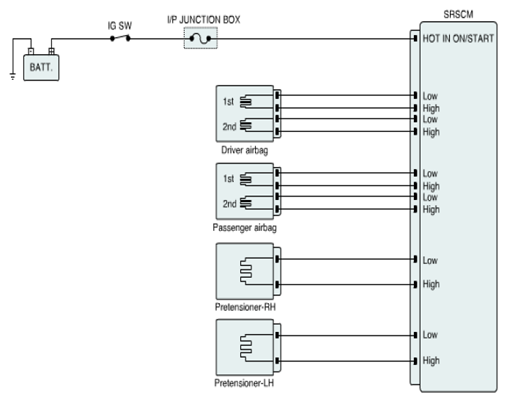

Home >> Kia >> 2010 >> Soul Sport, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) - Diagnosis >> DTC B1395: Firing Loops Interconnection Fault >> General Information >> Diagnostic Circuit Diagram
