Monitor Scantool Data
- Ignition "OFF", connect scantool.
- Ignition "ON" Engine "OFF", select "Current Data" mode.

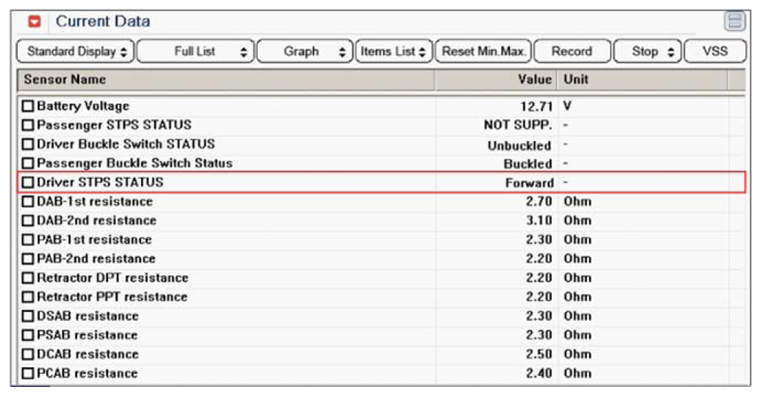

- Monitor the "STPS-Driver status" parameter on the Scantool.
Specification: STPS-Driver the front: Forward, STPS-Driver the rear: Rearward
- Is DTC present?
YES
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent, caused by poor contact in the part's and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRE HARNESS INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent, caused by poor contact in the part's and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
