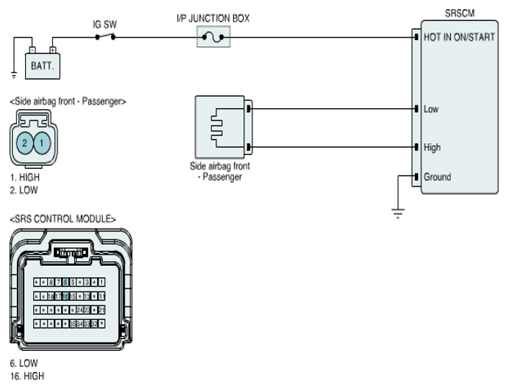

Home >> Kia >> 2010 >> Soul Sport, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) - Diagnosis >> DTC B1384: Side Airbag Front-Passenger Resistance Circuit Short To Ground >> General Information >> Diagnostic Circuit Diagram
