Squib Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
  3. Disconnect PBPT module and connect the dummy (0957A-38200) and dummy adapter (0957A-1C000) to main harness connector.
    NOTE: If dummy and dummy adaptor are not able to be prepared, use a known-good PBPT or 2Ω resistor.
  4. Connect (-) terminal cable to battery, turn Ignition ON (Engine OFF), and wait for 30 seconds or more.
  5. Connect scantool to Data Link Connector (DLC), clear DTC with scantool, and then diagnose again.

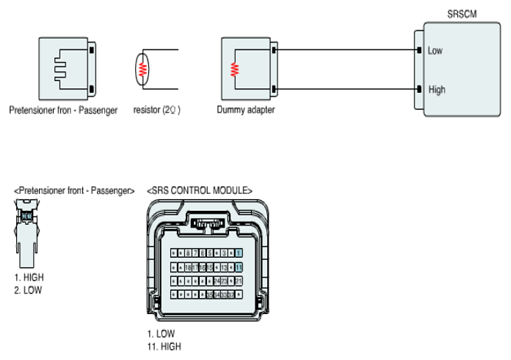

    Fig 1: Seat Belt Pretensioner & SRSCM - Circuit Diagram
    G06519598Courtesy of KIA MOTORS AMERICA, INC.
  6. Is DTC present?

    YES

    NO

    • Substitute a known-good PBPT assembly, and check for proper operation.

      If the problem is corrected, replace PBPT and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
