Squib Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
  3. Disconnect DBPT module and connect the dummy (0957A-38200) and dummy adapter (0957A-1C000) to main harness connector.
    NOTE: If dummy and dummy adaptor are not able to be prepared, use a known-good DBPT or 2Ω resistor.
  4. Connect (-) terminal cable to battery, turn Ignition ON (Engine OFF), and wait for 30 seconds or more.
  5. Connect scantool to Data Link Connector (DLC), clear DTC with scantool, and then diagnose again.

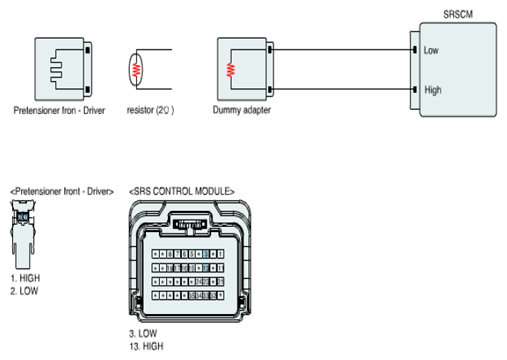

    Fig 1: Seat Belt Pretensioner & SRSCM - Circuit Diagram
    G06519583Courtesy of KIA MOTORS AMERICA, INC.
  6. Is DTC present?

    YES

    NO

    • Substitute a known-good DBPT assembly, and check for proper operation.

      If the problem is corrected, replace DBPT and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
