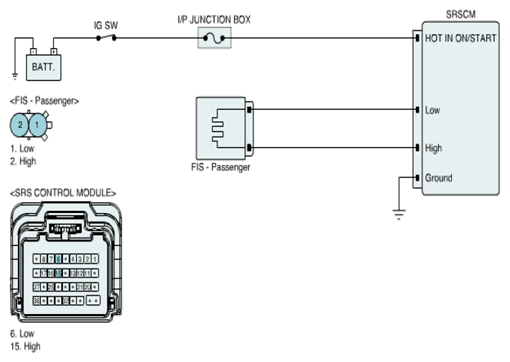

Home >> Kia >> 2010 >> Soul Sport, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) - Diagnosis >> DTC B1334: FIS (Front Impact Sensor)-Passenger Communication Error >> General Information >> Diagnostic Circuit Diagram
