WCS Reset

Ignition "OFF", connect scantool.
Ignition "ON" Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or

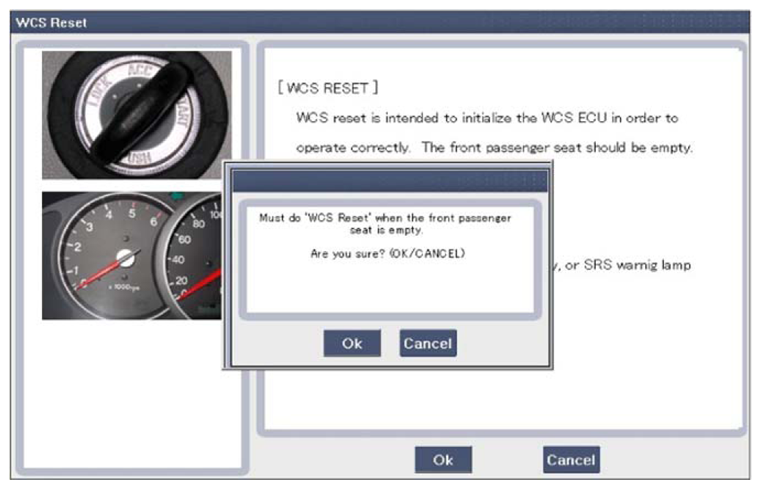

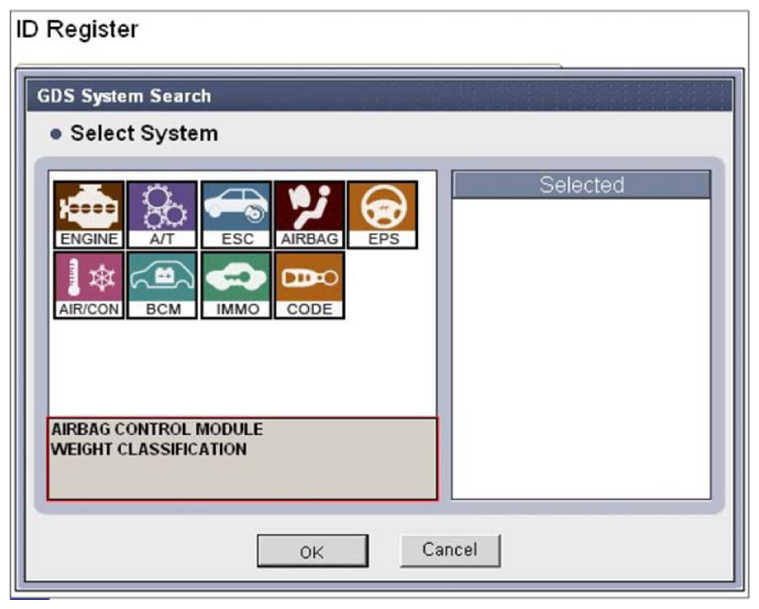

Fig 1: Scantool Display - Weight Classification System Reset (1 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

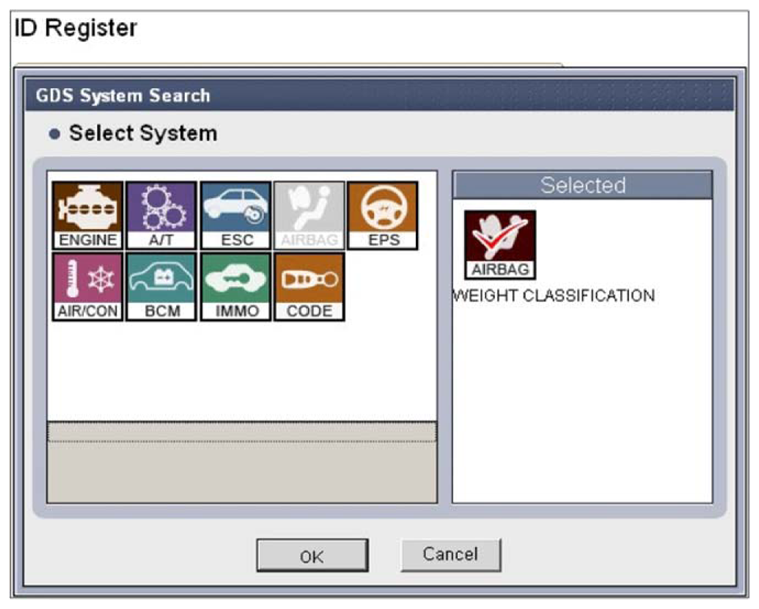

Fig 2: Scantool Display - Weight Classification System Reset (2 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

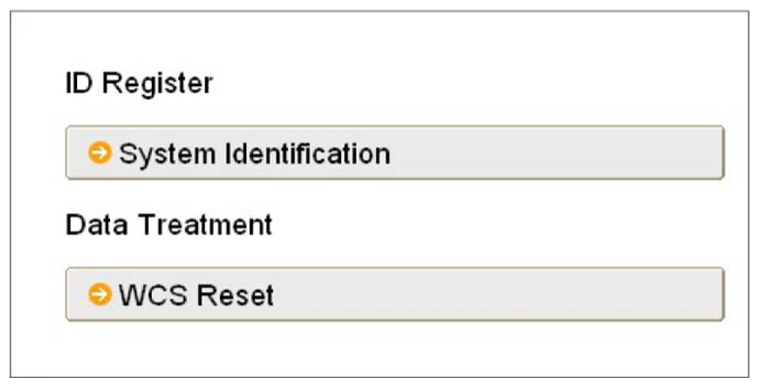

Fig 3: Scantool Display - Weight Classification System Reset (3 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Scantool Display - Weight Classification System Reset (4 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

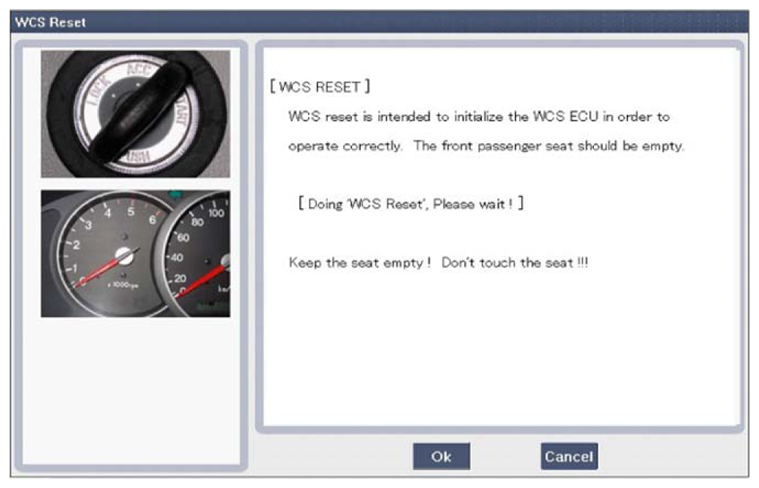

Fig 5: Scantool Display - Weight Classification System Reset (5 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

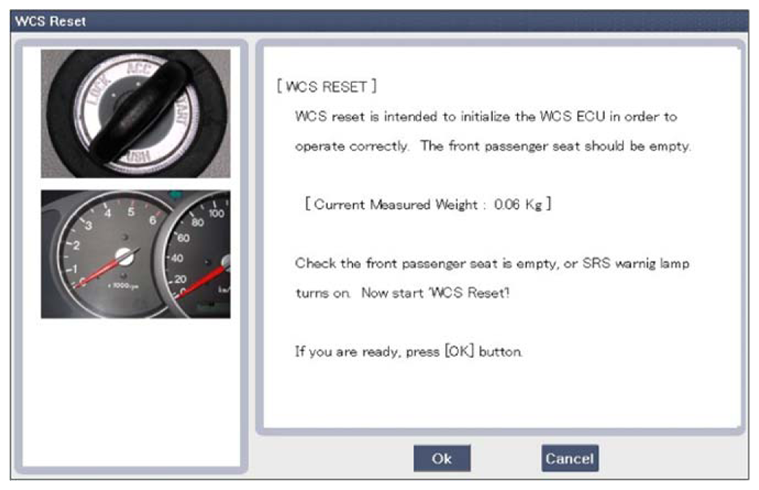

Fig 6: Scantool Display - Weight Classification System Reset (6 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.
If the 'WCS Reset' operation is finished successfully, you will see the following screen:

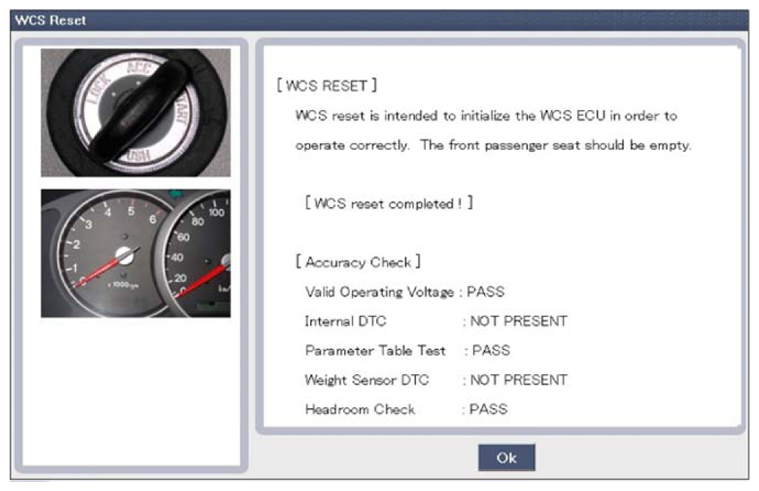

Fig 7: Scantool Display - Weight Classification System Reset (7 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Scantool Display - Weight Classification System Reset (8 Of 8)
Courtesy of KIA MOTORS AMERICA, INC.
Is the displayed parameter the same as shown in Fig 8?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the appropriate troubleshooting procedure.
