Monitor Scantool Data

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
Monitor diagnostic trouble code and presence of trouble code.
Using a scantool, clear the DTC, and then re-check for DTC.

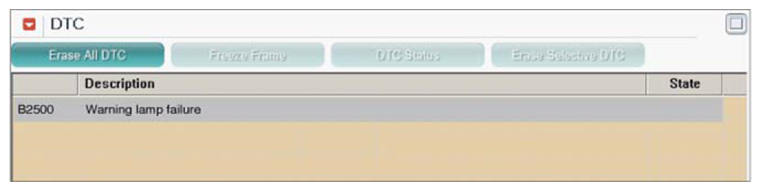

Fig 1: Scantool Screen Display - Warning Lamp Failure
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC present?
YES
- Go to "WIRE HARNESS INSPECTION " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that fault is intermittent, caused by poor contact in the part's and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
  Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

  Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
