Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and presence of trouble code.
  4. Using a scantool, clear the DTC, and then re-check for DTC.

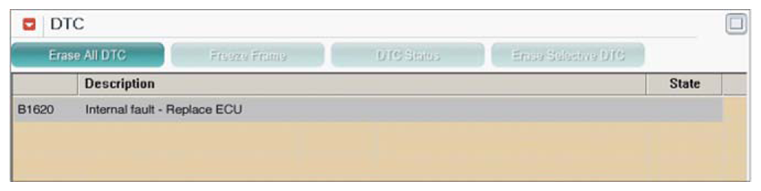

    Fig 1: Scantool Screen Display - Internal Fault - Replace ECU
    G06519394Courtesy of KIA MOTORS AMERICA, INC.
  5. Is DTC present?

    YES

    • Internal fault of SRSCM. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
