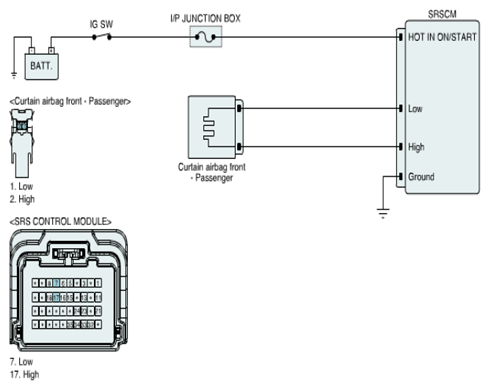

Home >> Kia >> 2010 >> Soul Sport, Standard >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) - Diagnosis >> DTC B1480: Inflatable Curtain Airbag Front-Passenger Resistance Circuit Short To Battery >> General Information >> Diagnostic Circuit Diagram
