Diagnostic Circuit Diagram

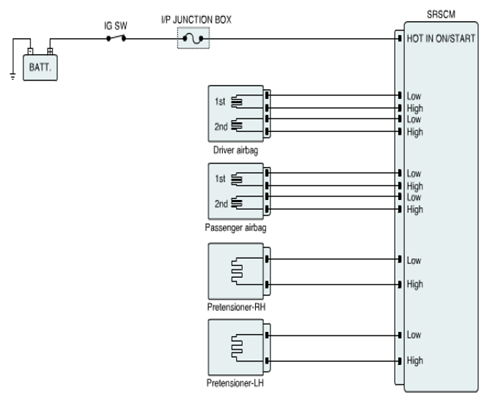

Fig 1: Supplemental Restraints System Control Module - Circuit Diagram (1 Of 2)
G06519263Courtesy of KIA MOTORS AMERICA, INC.

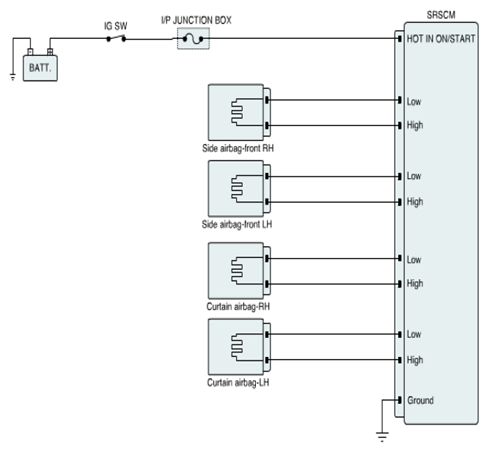

Fig 2: Supplemental Restraints System Control Module - Circuit Diagram (2 Of 2)
G06519264Courtesy of KIA MOTORS AMERICA, INC.

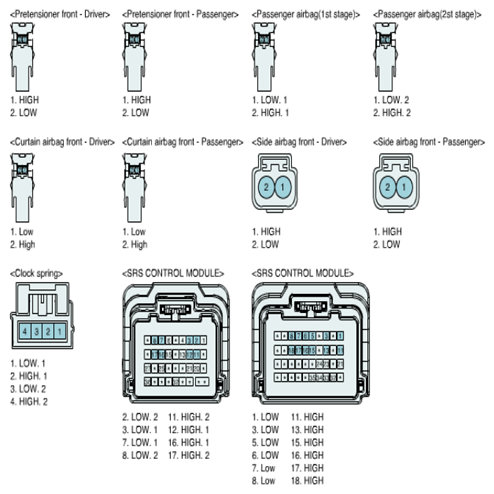

Fig 3: Identifying Connectors & Terminals
G06519265Courtesy of KIA MOTORS AMERICA, INC.
