Squib Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
  3. Disconnect PSAB module and connect the dummy (0957A-38200) and dummy adapter (0957A-1C000) to main harness connector.
    NOTE: If dummy and dummy adaptor are not able to be prepared, use a known-good PSAB or 2Ω resistor.
  4. Connect (-) terminal cable to battery, turn Ignition ON (Engine OFF), and wait for 30 seconds or more.
  5. Connect scantool to Data Link Connector (DLC), clear DTC with scantool, and then diagnose again.

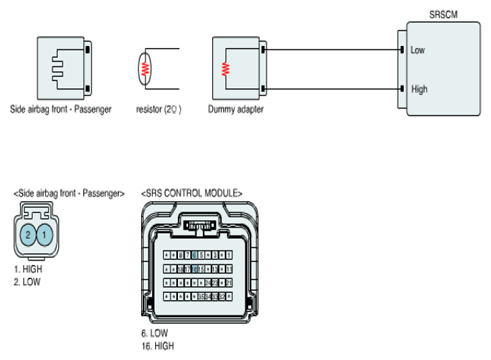

    Fig 1: Squib Circuit Inspection Diagram
    G06519244Courtesy of KIA MOTORS AMERICA, INC.
  6. Is DTC present?

    YES

    NO

    • Substitute a known-good PSAB assembly, and check for proper operation.

      If the problem is corrected, replace PSAB and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
