WCS Reset

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
  3. You will see comments and current weight measured.
  4. Make sure the measure weight is caused by occupant or tools or interference.
  5. And then press "ENTER"

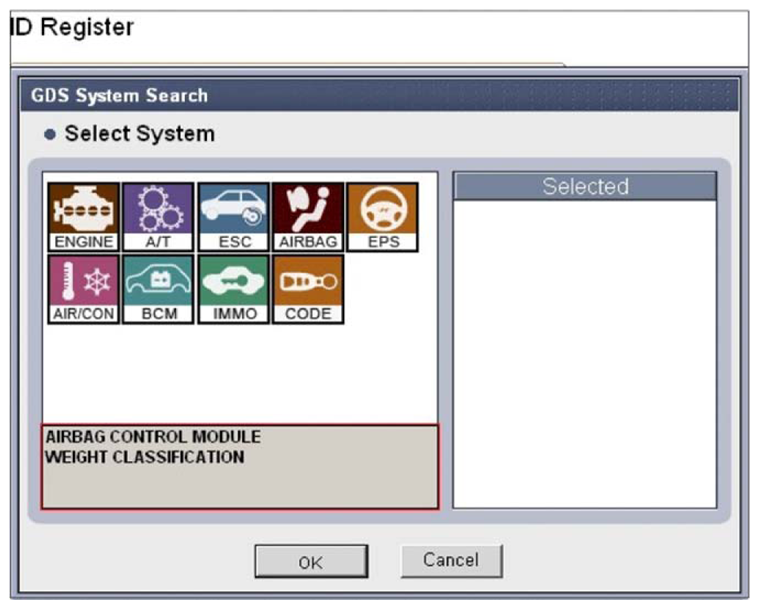

    Fig 1: Scantool Display - ID Register
    G06519478Courtesy of KIA MOTORS AMERICA, INC.
  6. Ignition "ON" Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode of WCS (Weight Classification).
  7. Monitor diagnostic trouble code and presence of trouble code.

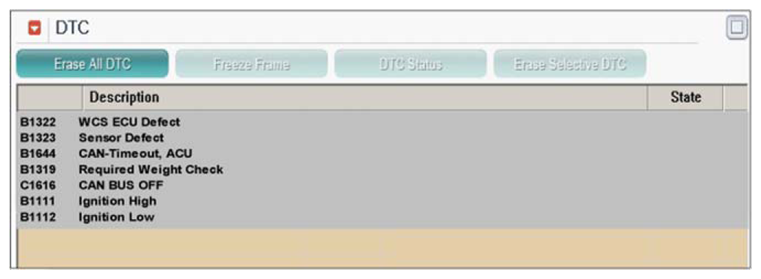

    Fig 2: Scantool Display - Diagnostic Trouble Code
    G06519479Courtesy of KIA MOTORS AMERICA, INC.
  8. Is DTC present?

    YES

    • Go to appropriate DTC Troubleshooting Information.
