Shifter A/T: Adjustments

Adjustment

Adjusting the shift cable

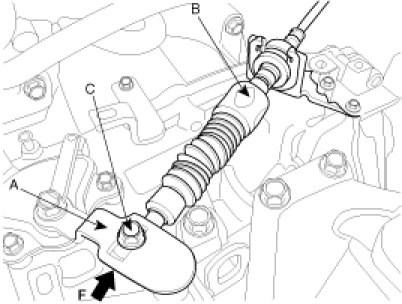

1. Set the room side lever and the manual lever (A) to N position.
2. Push the shift cable (B) lightly to "F" direction shown to eliminate the free play.




3. Tighten the adjusting nut (C).

Tightening torque :
10 - 14Nm (1.0 - 1.4kgf.m, 7.2 - 10.1lb-ft)


4. Check that this part operates at each range of the manual lever corresponding to each position of the room lever.
