Repair Procedures

Replacement

1. Remove the front wheel & tire.

Tightening torque :
90 - 110 N.m (9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

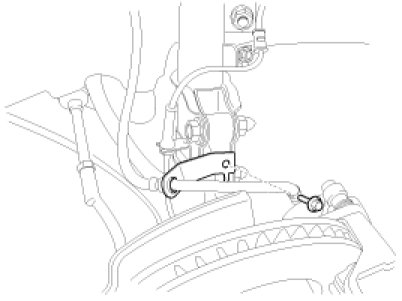

2. Remove the brake hose and the wheel speed sensor bracket from the front strut assembly by loosening the mounting bolts.




3. Disconnect the stabilizer link with the front strut assembly after loosening the nut.

Tightening torque :
100 - 120 N.m (10.0 - 12.0 kgf.m, 72 - 87 lb-ft)





4. Loosen the strut mounting nuts.

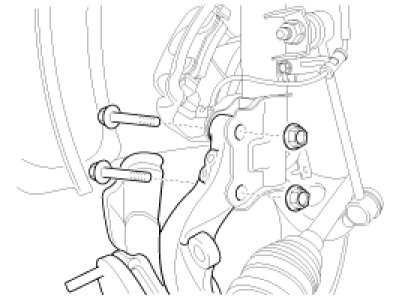

5. Disconnect the front strut assembly with the knuckle by loosening the bolt & nut.

Tightening torque :
140 - 160 N.m (14.0 - 16.0 kgf.m, 101 - 115 lb-ft)





6. Installation is the reverse of removal.
