Inspection





Inspection

1. Check the strut insulator bearing for wear or damage.
2. Check rubber parts for damage or deterioration.

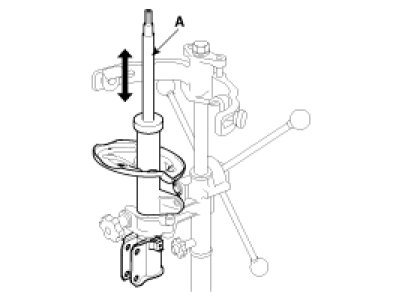

3. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
