Disassembly

Disassembly

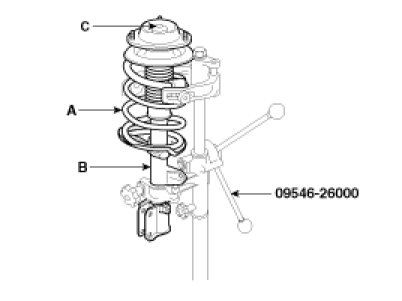

1. Using the special tool (09546-26000), compress the coil spring (A) until there is only a little tension of the spring on the strut.




2. Remove the self-locking nut (C) from the strut assembly (B).
3. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
