Disassembly

Disassembly

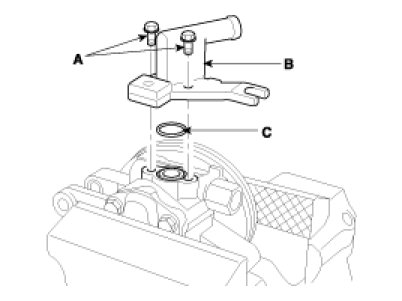

1. Remove two two bolts(A) from the oil pump body, and then remove the suction pipe(B) and O-ring(C).




2. Loosen the four bolts and remove the oil pump cover assembly.
3. Remove the cam ring.
4. Remove the rotor and vanes.
5. Remove the oil pump side plate.

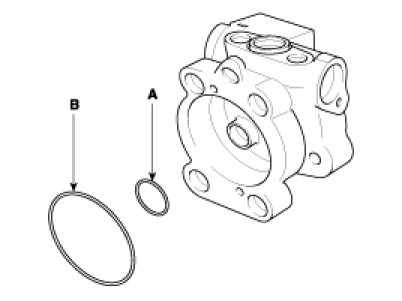

6. Remove the inner O-ring(A) and outer O-ring(B).




7. Remove the snap ring and take out the pulley and the drive shaft assembly(A).




8. Remove the oil seal(A) from the oil pump body.

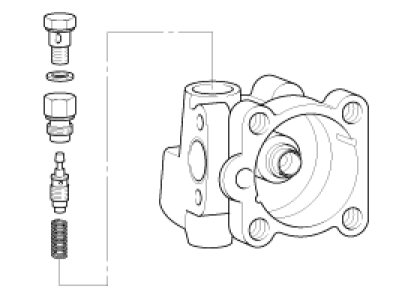

9. Remove the connector from the oil pump body, and take out the flow control valve and the flow control spring.
