Passenger Compartment Fuse Details (3)

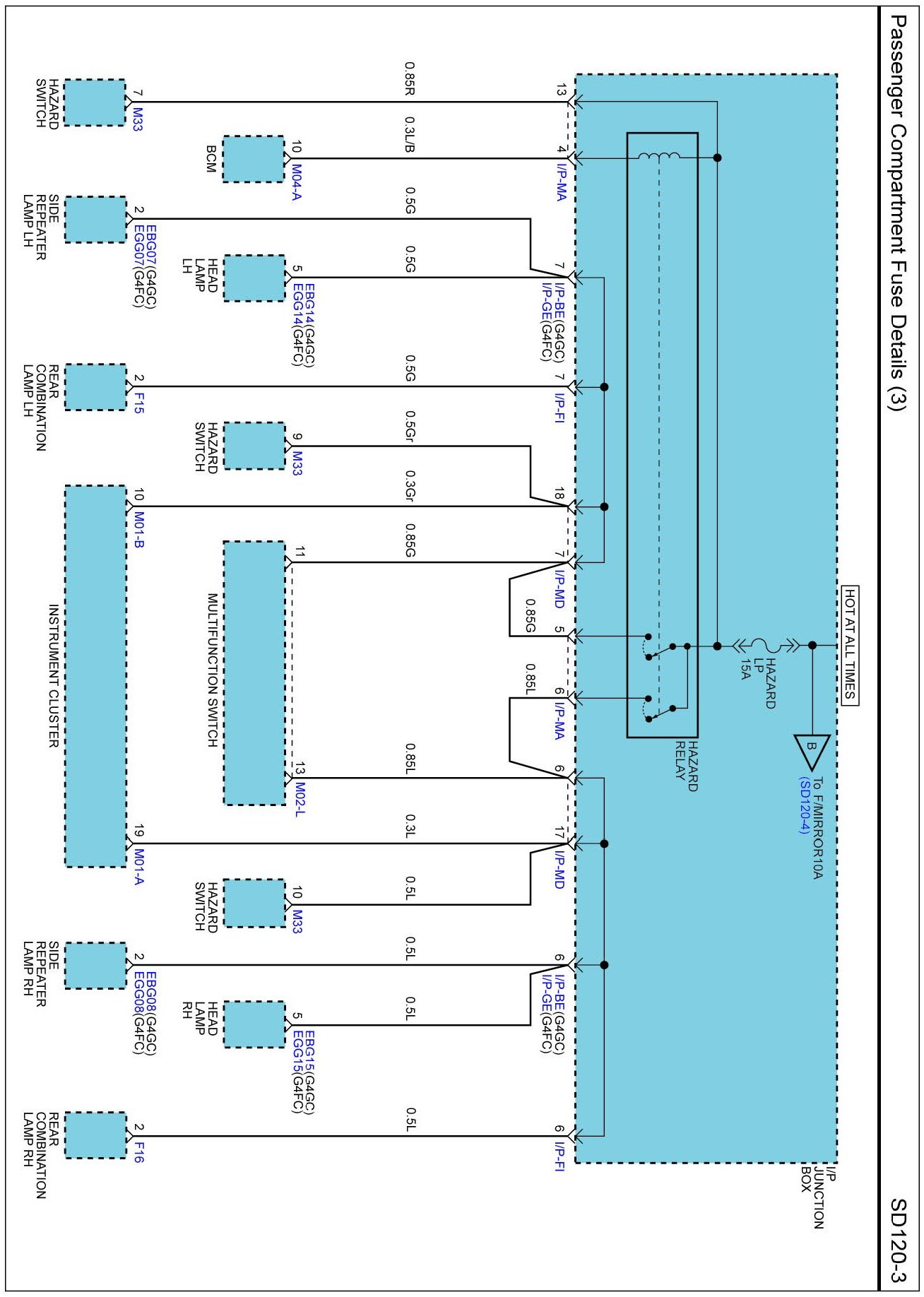

SD120-3 Passenger Compartment Fuse Details (3):






Next Diagram: Passenger Compartment Fuse Details (4)

Previous Diagram: Passenger Compartment Fuse Details (2)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
