Rear Seat Belt

Replacement

Seat belt relacement

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Rear door scuff trim.
C. Transverse trim.

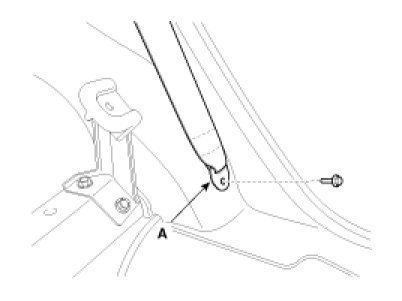

2. Remove the lower anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)

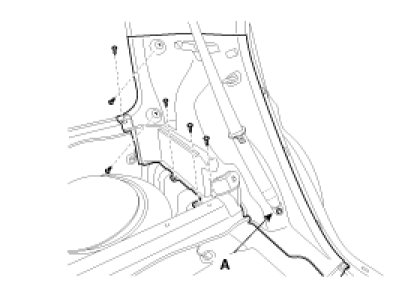

3. Remove the luggage side trim (A).




4. Remove the rear pillar trim (A).

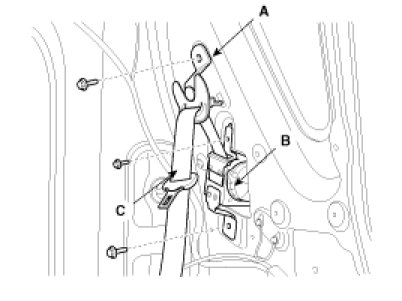

5. After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).
6. Remove the upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)





7. Installation is the reverse of removal.
