Fuel Filler Neck: Service and Repair

Removal

1. Disconnect the fuel filler hose (A) and the ventilation hose (B) from the fuel tank air filter.

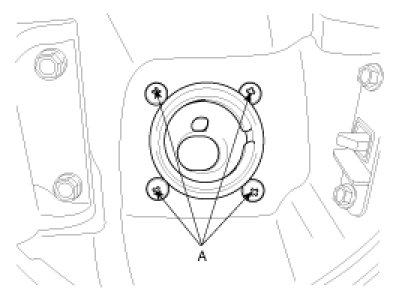

2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




3. Remove the rear-LH wheel, tire, and the inner wheel house.

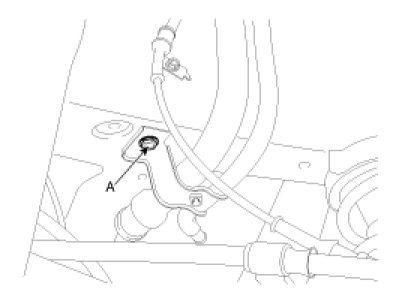

4. Remove the bracket mounting bolt (A) and remove the filler-neck assembly.






Installation

1. Installation is reverse of removal.

Filler-neck assembly installation bolt:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
Filler-neck assembly installation screw:
5.6 - 6.9 N.m (0.6 - 0.7 kgf.m, 4.3 - 5.1 lb-ft)
