Evaporative Emission Control Canister: Service and Repair

Removal

1. Remove the fuel tank.

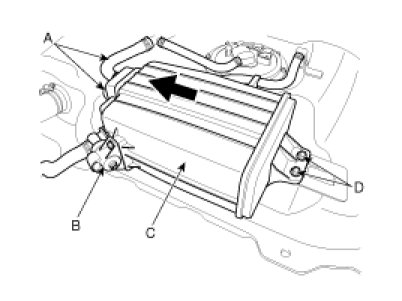

2. Disconnect the vapor hoses (A).
3. Remove the canister close valve (B) after removing the installation bolts.




4. Remove the canister (C) in the direction of the arrow after removing the installation bolts (D).

Installation

Installation is the reverse of removal.
