Tail Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

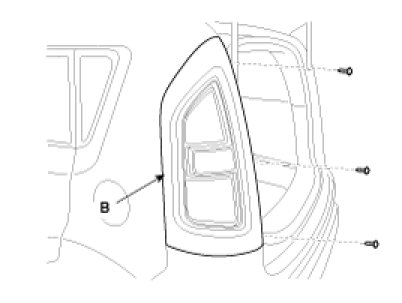

2. Remove the rear combination lamp assembly (B) after removing connector (A) and screw (3EA).

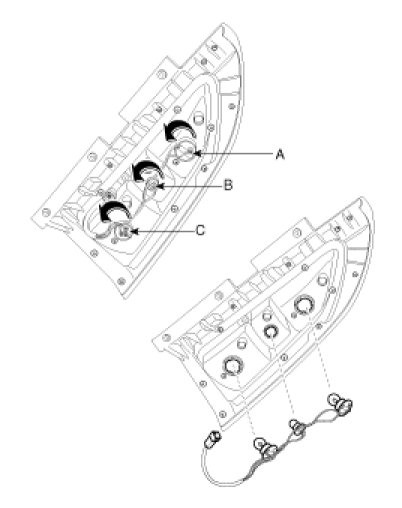

3. Replace the lamp bulbs after turning in the counter clock-wise direction.
A: Turn signal lamp
B: Back up lamp
C: Tail / Stop lamp






Installation

1. Connect the lamp connector after assembling the bulb.
2. Install the rear combination lamp assembly.
