Lighting System

Inspection

Front Fog Lamp
1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel.

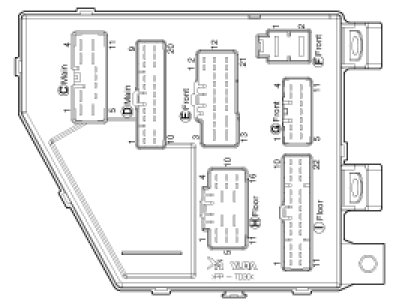

3. Remove the junction box.




4. Check for continuity between the terminals.
(1) There should be continuity between the No.1 terminals in the I/P-F and No.11 terminals in the I/P-G when power and ground are connected to the No.1 terminals in the I/P-F and No.3 terminals in the I/P-A.
(2) There should be no continuity between the No.1 terminals in the I/P-F and No.11 terminals in the I/P-G when power is disconnected.
