Center Mounted Brake Lamp: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.

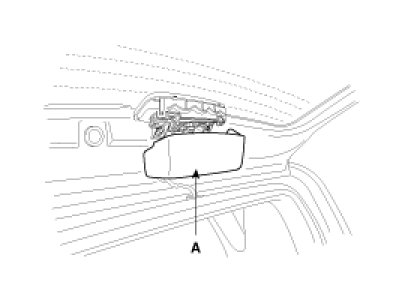

2. Remove the high mounted stop lamp cover (A).

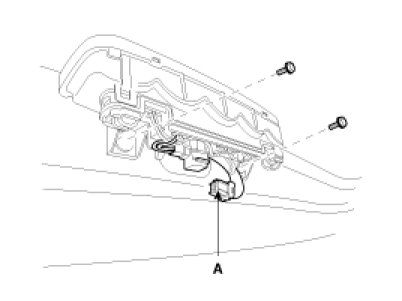

3. Remove the connector (A) and bolts.




4. Replace the bulbs (A).






Installation

1. Install the high mounted stop lamp and connector.
2. Install the high mounted stop lamp cover.
