Backup Lamp Switch: Service and Repair

Replacement

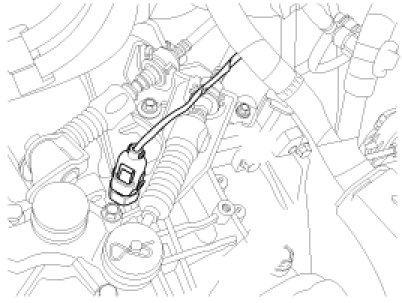

1. Disconnect the back up lamp switch connector.




2. Remove the back up lamp switch.
3. Install new back up lamp switch, then connect the connector.

Tightening torque :
30 - 35 Nm (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)
