Lower Panel Replacement





Replacement

Lower Panel Replacement

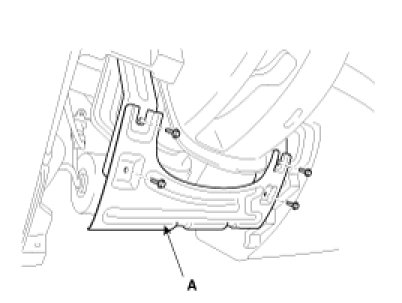

1. After loosening the crash pad lower panel mounting screws, remove the lower panel (A).




2. Disconnect the connector (A).




3. After loosening the mounting bolts, then remove the reinforcing panel (A).




4. Installation is the reverse of removal.
