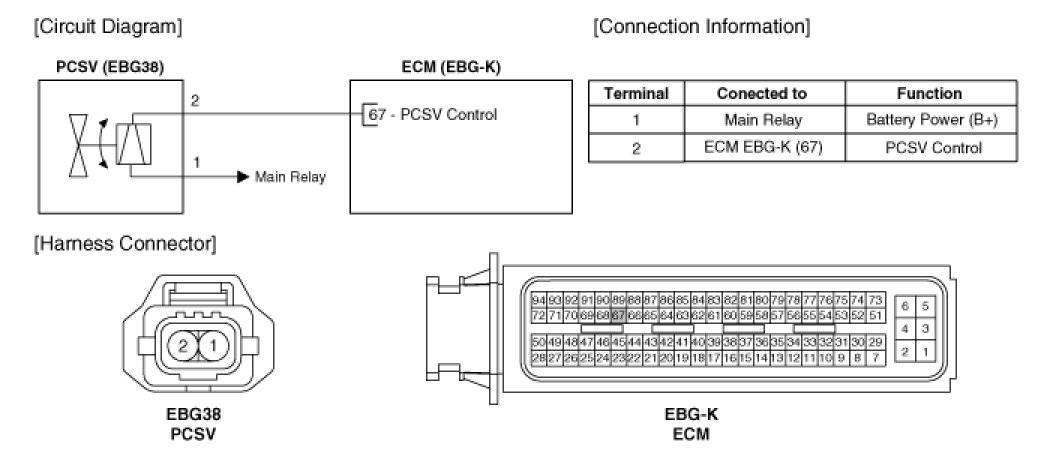

Home >> Kia >> 2010 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Control Valve
