Home >> Kia >> 2010 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD981 (Front Wiper & Washer)

Diagram Set SD981 (Front Wiper & Washer)

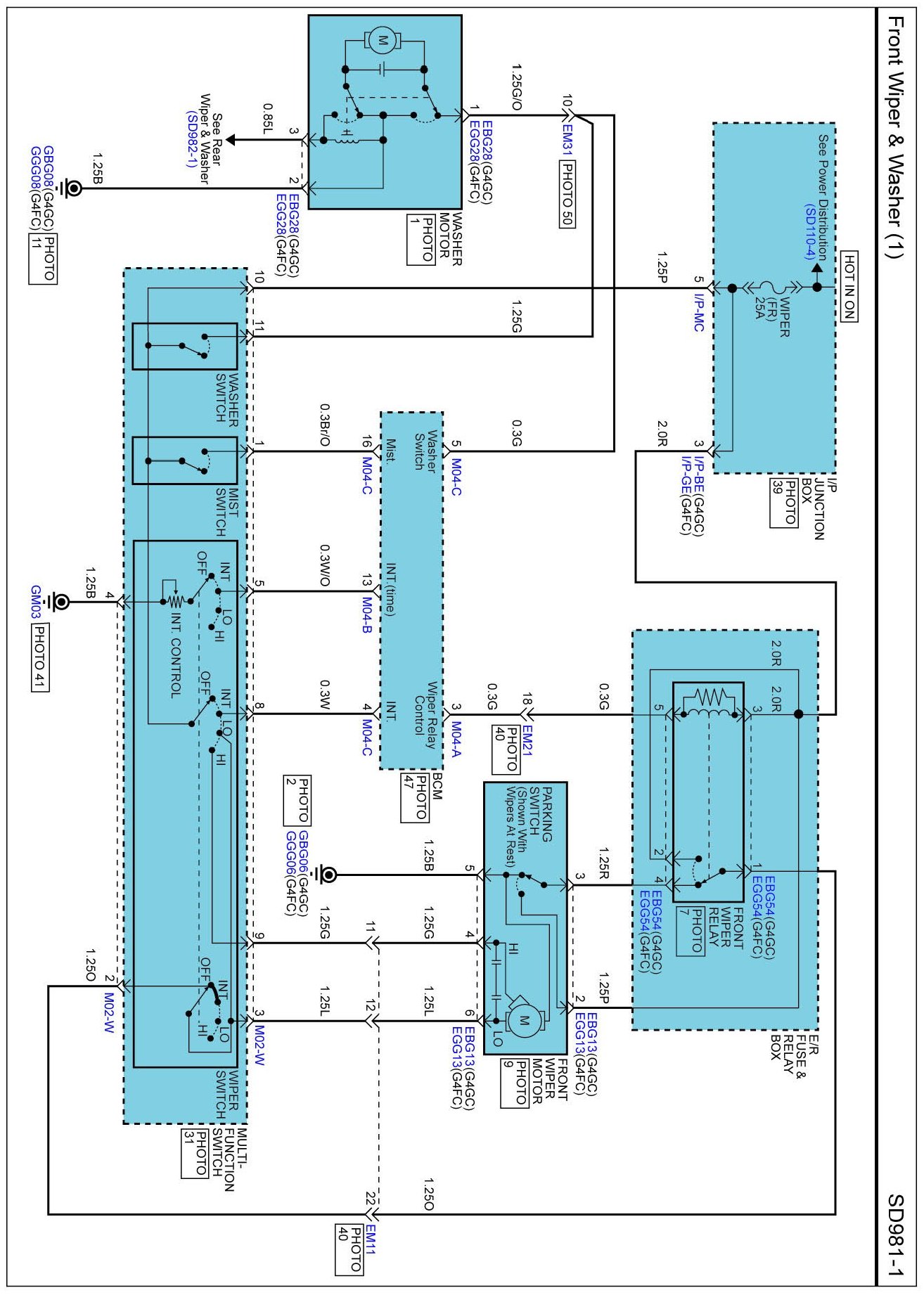

SD981-1 Front Wiper & Washer (1):
