Diagram Set SD961 (Audio )

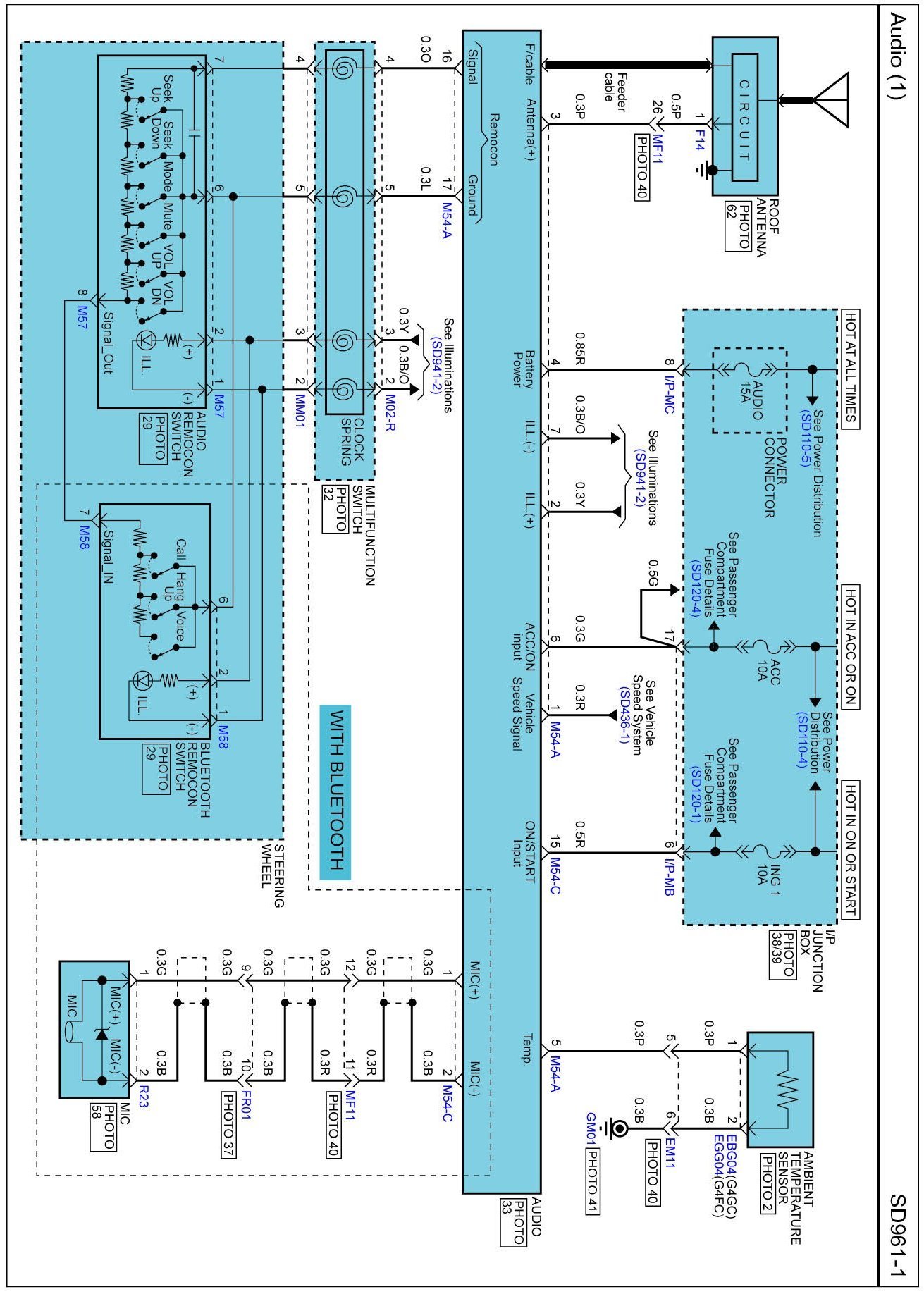

SD961-1 Audio (1):

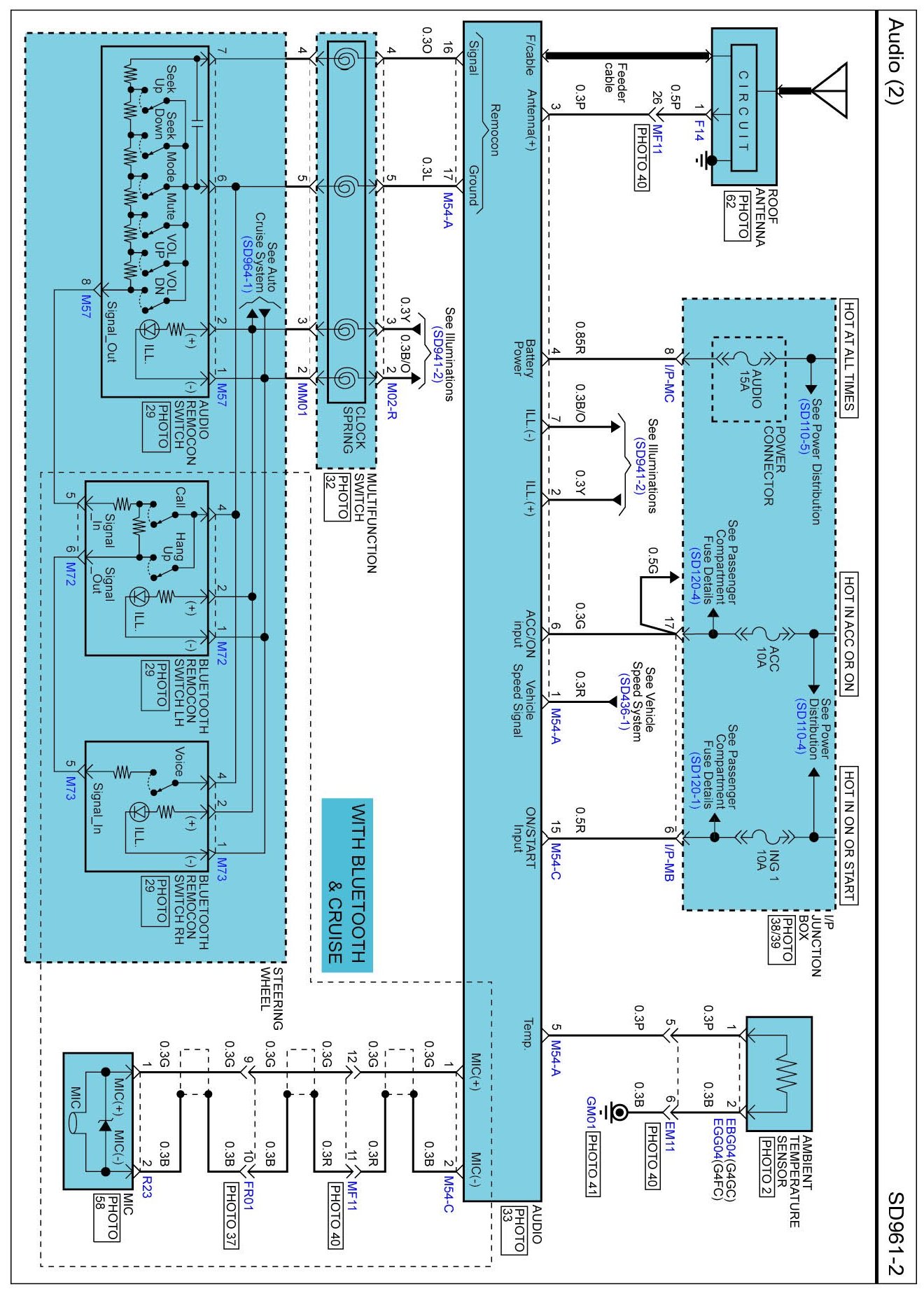

SD961-2 Audio (2):

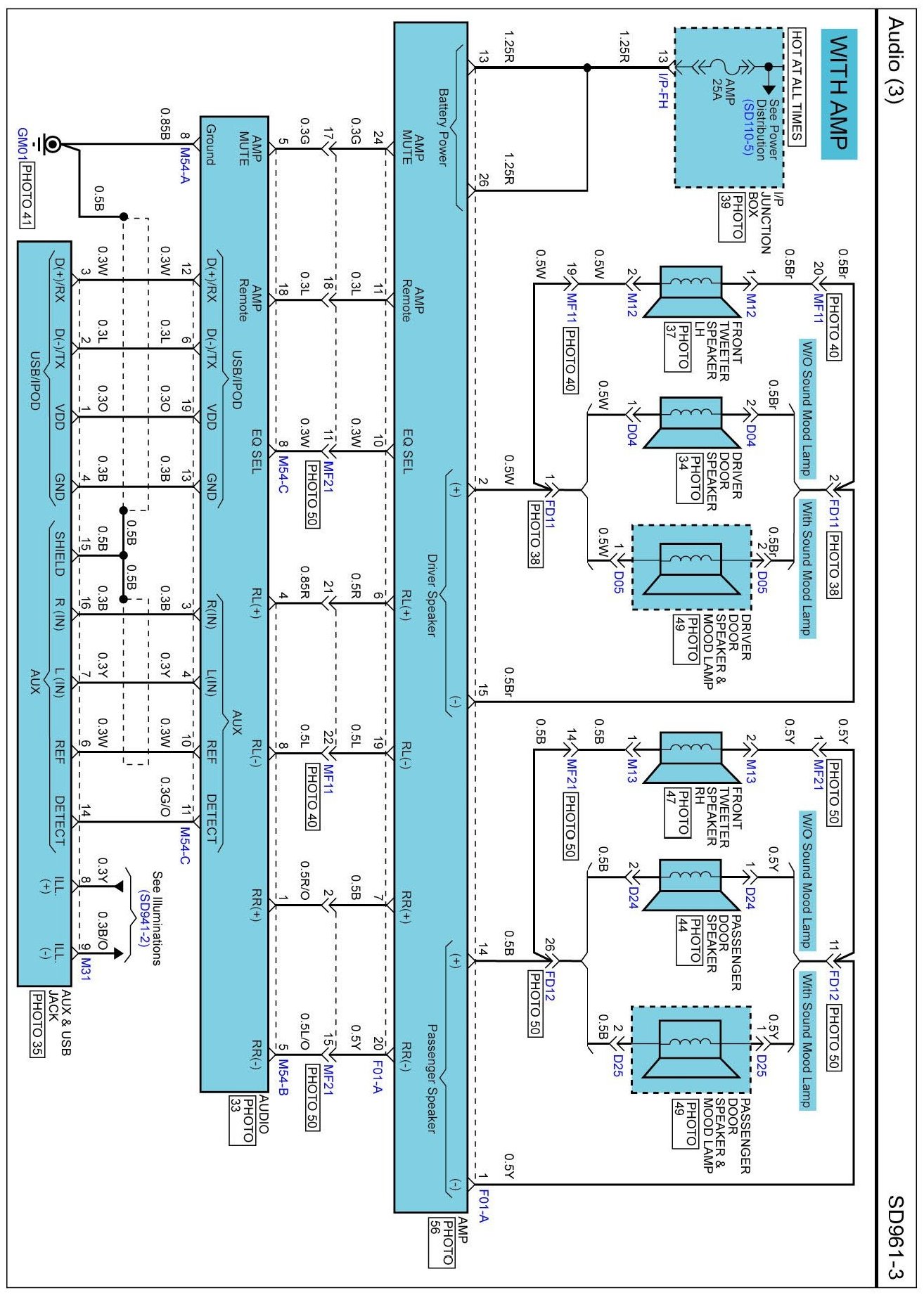

SD961-3 Audio (3):

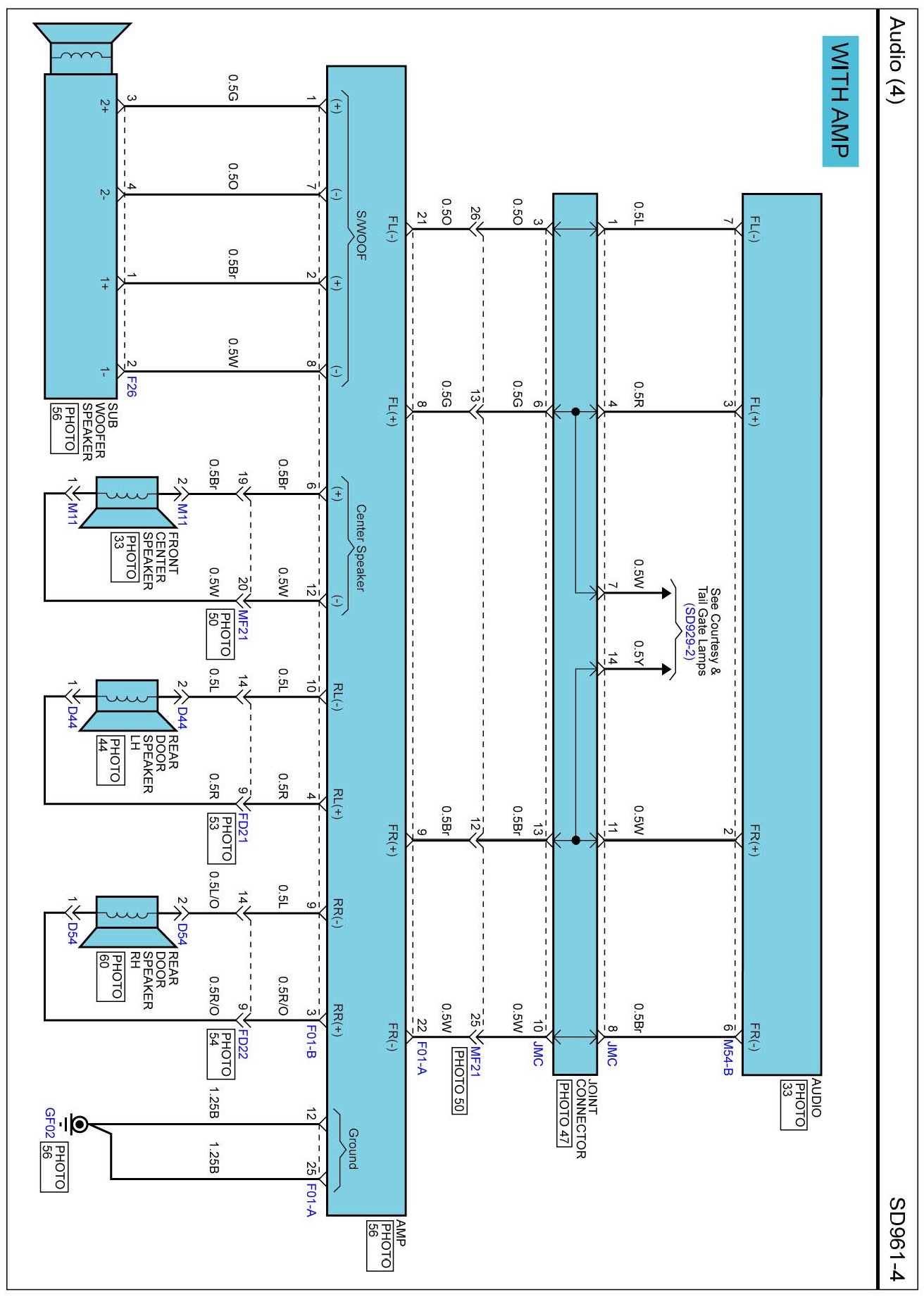

SD961-4 Audio (4):

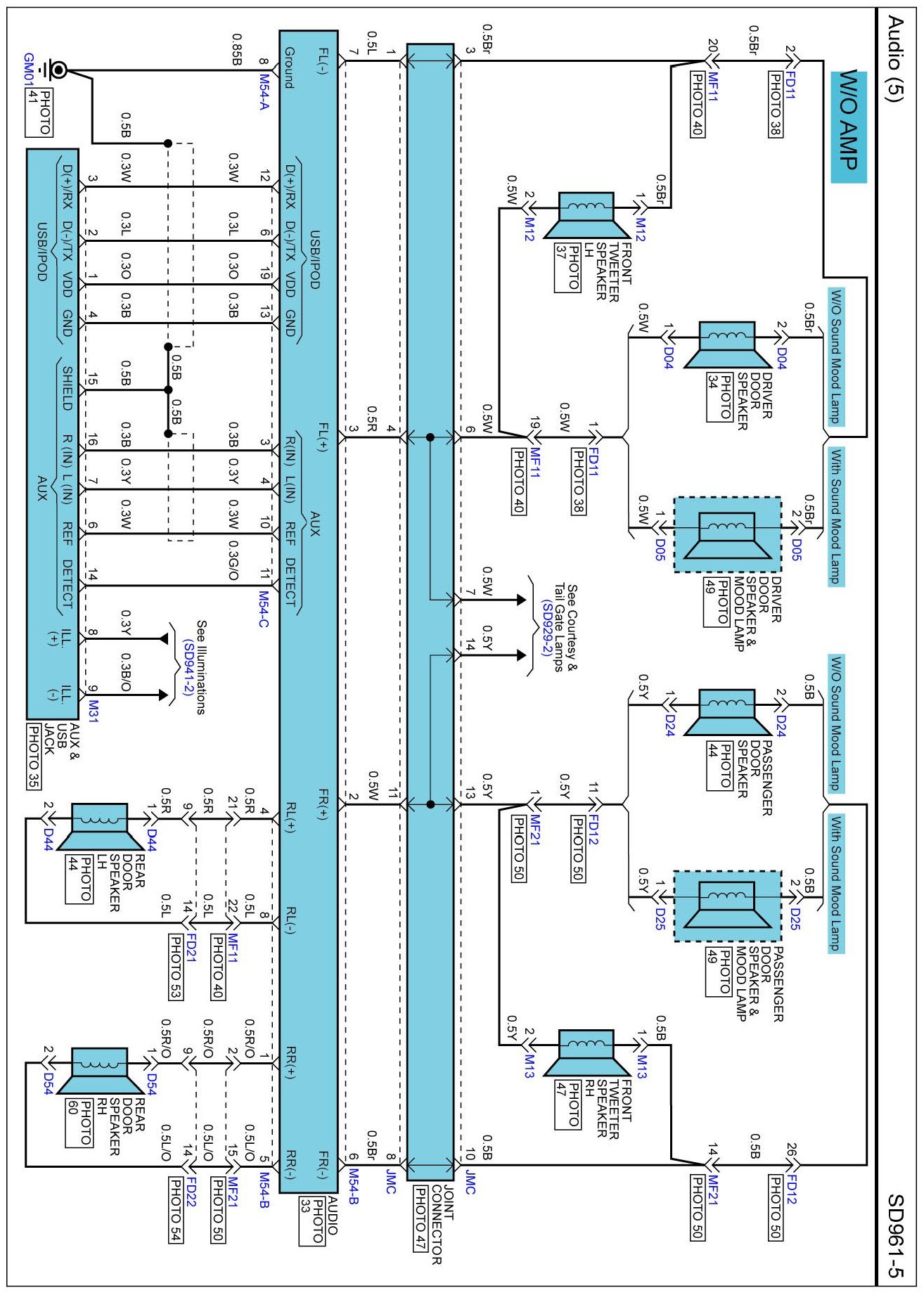

SD961-5 Audio (5):
