Diagram Set SD945 (Clock & Cigarette Lighter (Power Outlet))

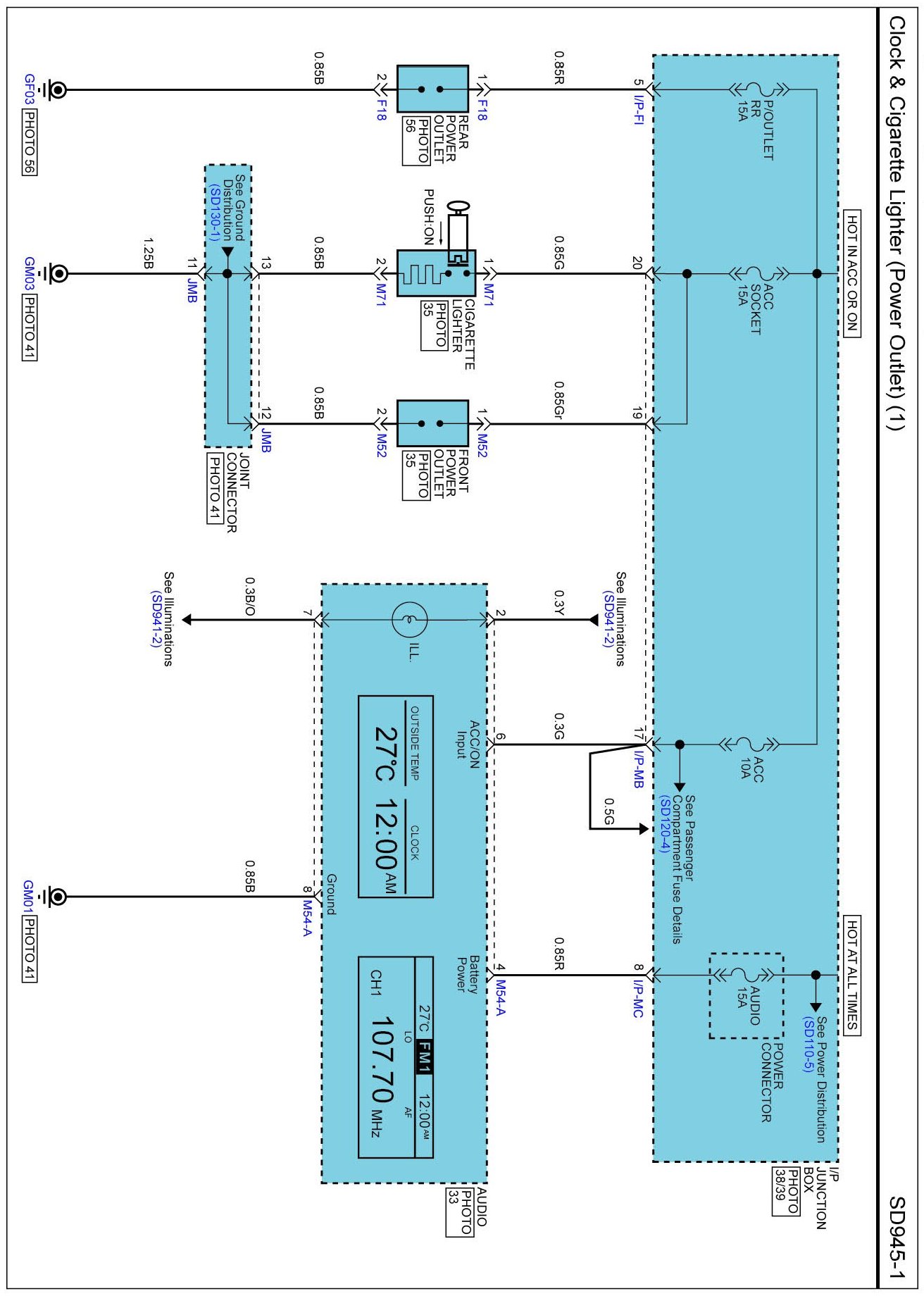

SD945-1 Clock & Cigarette Lighter (Power Outlet) (1):
