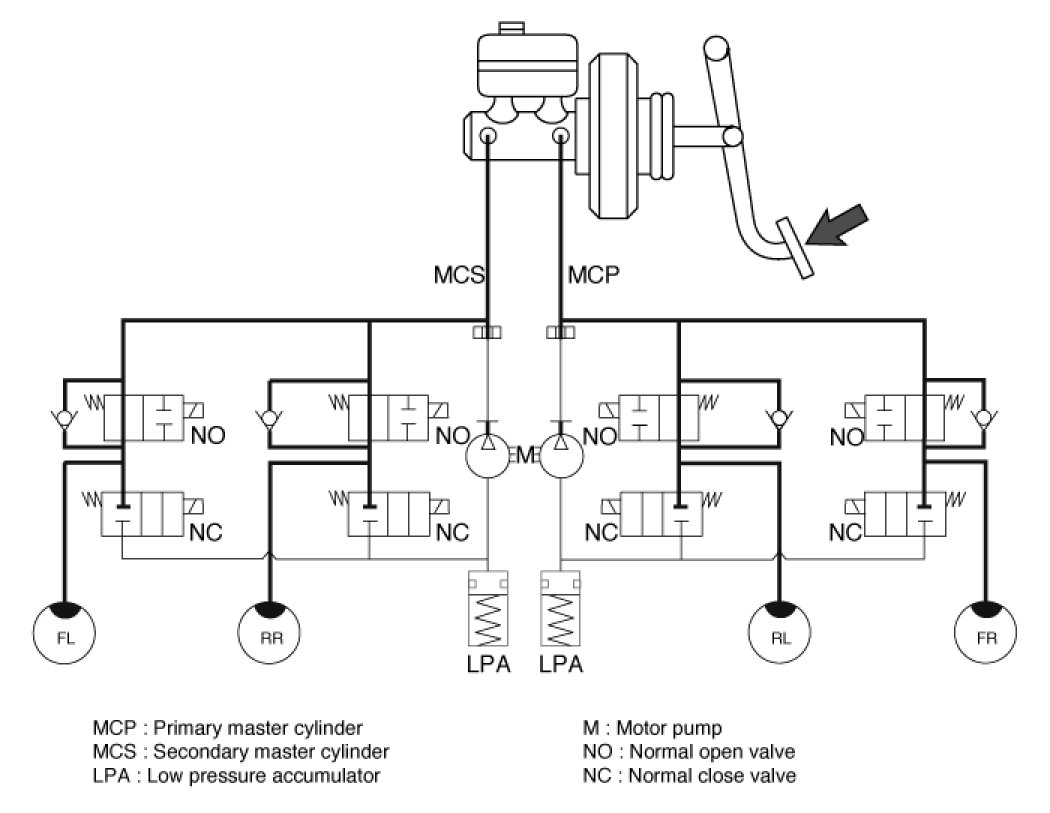

Home >> Kia >> 2010 >> Soul L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> ABS(Anti-Lock Brake System) >> Hydraulic System Diagram
