Power Door Locks

Inspection

Tailgate Lock Actuator Inspection
1. Remove the tailgate trim.

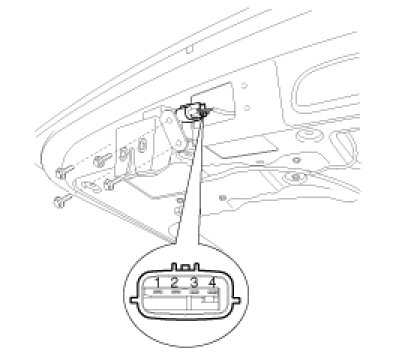

2. Disconnect the 4P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
