Trunk / Liftgate: Adjustments

Adjustment

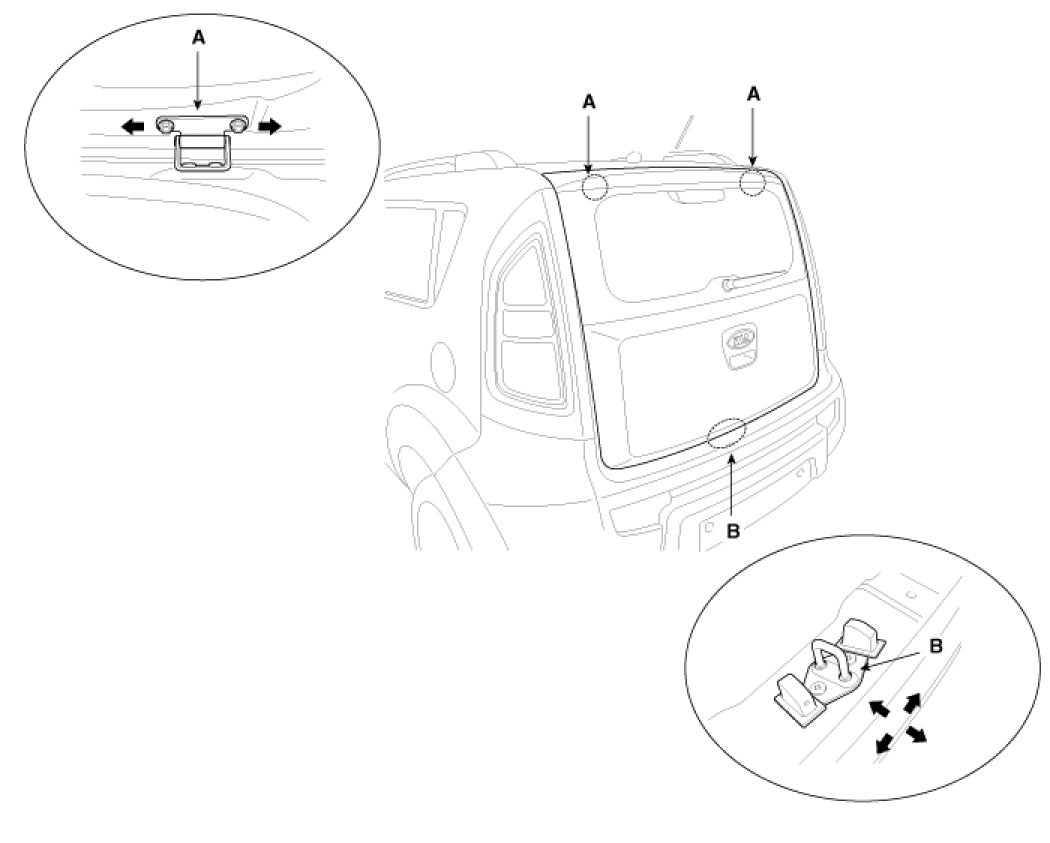

1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left, then tighten the bolts.
2. Adjust the tailgate fit by turning the tailgate Over Slam Bumper and Side Bumper.
3. Adjust the striker (B) by moving it up or down, or right or left.
