Front Door Panel: Service and Repair

Replacements

Door Trim Replacement

NOTE:
- Take care not to scratch the door trim and other parts.
- Put on gloves to protect your hands.

1. Remove the quadrant inner cover (A).




2. Remove the inside handle cover (A).

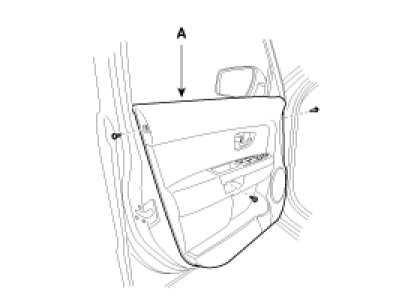

3. Loosen the door trim (A) mounting screws.
4. Release the clips that hold the door trim.

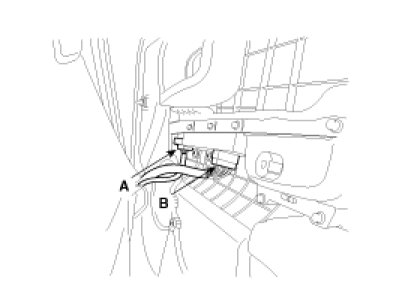

5. Disconnect the connectors (A) and (B).




6. Installation is the reverse of removal.

NOTE:
- Make sure of connectors is plugged in properly and each rod is connected securely.
- Make sure the door lock and opens properly.
