Center Speaker Replacement





Replacement

Center Speaker Replacement

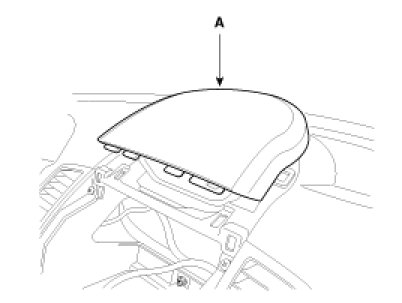

1. Remove the grill (A).

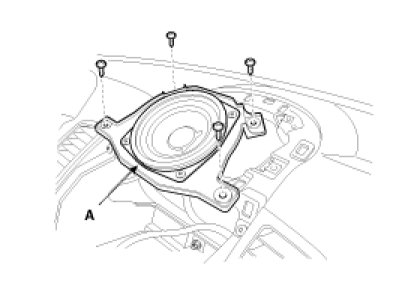

2. After loosening the mounting screws, remove the speaker (A).

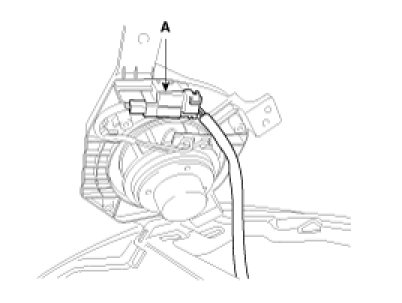

3. Disconnect the speaker connector (A).




4. Installation is the reverse of removal.
