Radio, Stereo, and Compact Disc: Service and Repair

Replacement

Audio Assembly Replacement
1. Remove the center fascia panel.

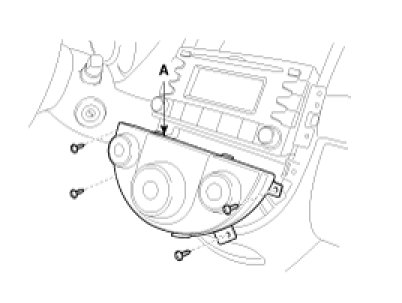

2. After loosening the heater control unit mounting screws, remove the heat control unit (A).

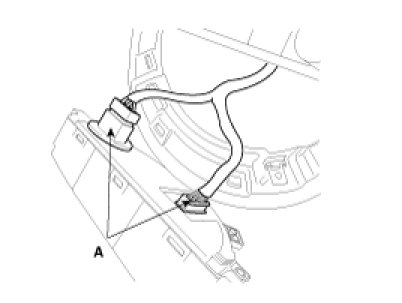

3. Disconnect the heat control unit connector (A).

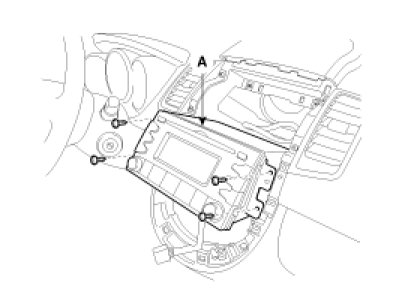

4. After loosening the audio assembly mounting screws, then remove the audio assembly (A).

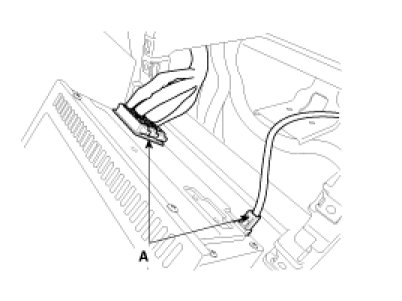

5. Disconnect the audio connectors (A).




6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
