Overhaul

Disassembly

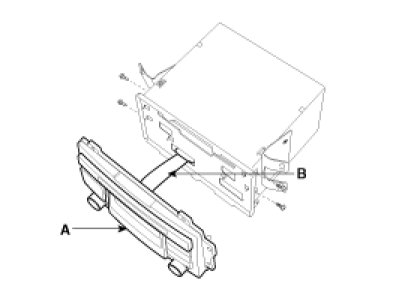

1. Disassemble the front panel(A) then disconnect the connector(B) between the unit and front panel.




2. Remove the top cover(A) after loosening 4 screws.

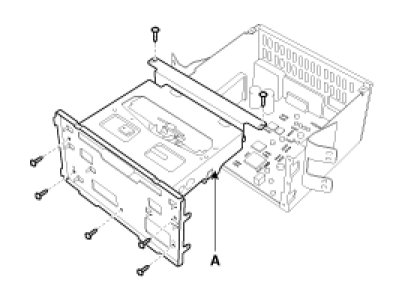

3. Disassemble the deck (A) from the unit after removing the connector and screws.






Reassembly

1. Reassemble the deck to the audio unit.
2. Reassemble the top cover.
3. Reassemble the front panel and connect the connector.
