Amplifier: Service and Repair





External Amplifier
1. Remove the right side trunk trim and disconnecting the connector.

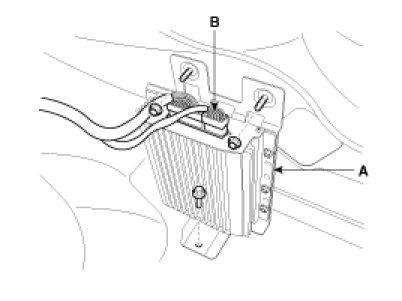

2. Remove the external amplifier(A) after loosening the nuts (2EA), bolt (1EA) and connector (B).






External Amplifier
1. Install the external amplifier and connect the external amplifier connector.
2. Install the right side trunk trim.
