Auxiliary Input / Output Jack: Testing and Inspection

Inspection

1. Disconnect the negative(-) battery terminal.

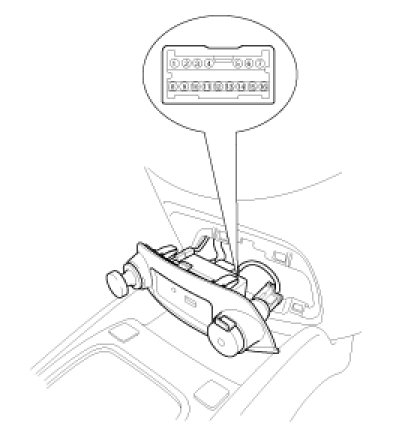

2. Disconnect the Multi Media Jack connector after from the floor console.




To inspect USB/IPOD port, check the voltage between NO.1 and 4 terminal of USB/iPod input port at AUX input.

Standard value :5V

To inspect AUJack, check the voltage between NO.14 terminal of Jack output connector and NO.4 terminal of USB/iPod input port at AUX input.

Standard value :5V
